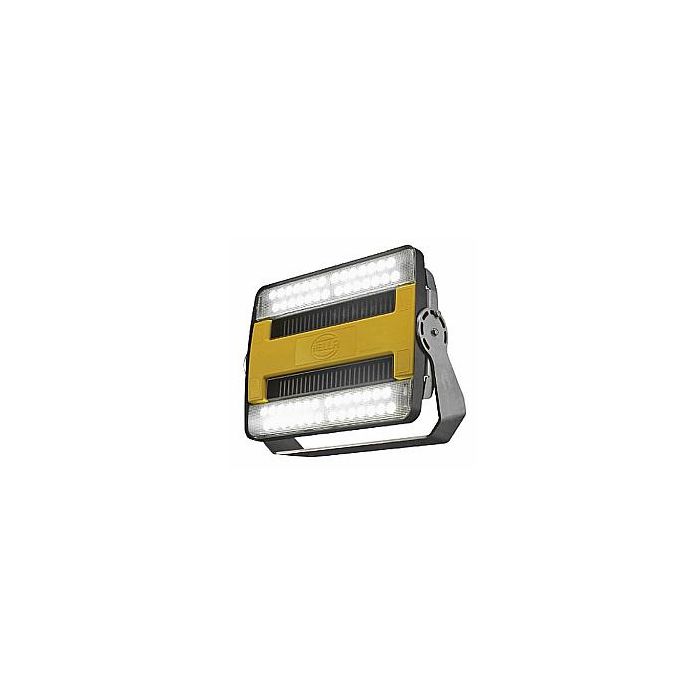

Hella HMF2000LMOB Hypalume LED Work Lamp 18-52V Long Range

Hella Marine Hypalume LED Work Lamp 18-52V Long Range

18-52V / 280W Hella Long Range Beam LED Lamp with a 1.8m Lead

HypaLUME® Heavy Duty LED Flood Light

Introducing the revolutionary HypaLUME® – the first high output LED flood light designed specifically for heavy duty industry

HELLA is proud to introduce its revolutionary HypaLUME®  LED Flood Light, the first high output LED flood light designed specifically for heavy duty industry. The HypaLUME® is suitable for both DC and AC applications. It has been designed to withstand the rigours of every demanding application by the HELLA Australia team.

By drawing on the award winning success of our mining LED work lights, latest technologies and materials, HELLA has produced a LED flood light for heavy duty applications that will provide the most economical lighting solutions.

The HypaLUME® has been designed to excel in multiple applications, where high output LED lighting is required. 56 High Power LEDs produce more than 20,000 Lumens output – the LEDs are coupled with three specialised optical distributions, so all lighting applications are catered for.

The LEDs have a color temperature of 5700K to provide a near daylight environment – ensuring high color-rendering to assist with critical work tasks.

The LED driver electronics ensure light output remains stable over a wide range of voltage variations. The HypaLUME® is also protected from reverse polarity and short circuit faults.

The HypaLUME® consumes a mere 240W at 24VDC, ensuring a luminous efficacy close to 100 Lumens per Watt. It provides the equivalent usable light level of a 400W metal halide light fitting – for far less power consumption.

The specially designed LED driver board, moulded fins for heat dissipation and LED alignment ensure advanced thermal management, drawing heat away from the LEDs to maintain the extended life guarantee offered by HELLA Mining’s class leading 5 year LED warranty.

The HypaLUME® is designed to operate over an extreme temperature range, ranging from -40°C to +50°C with no decrease in light output. A UV stable, high impact and  chemical resistant, Grilamid lens protects the LEDs from environmental damage. A variety of bracket options are  available including a 50G mobile equipment bracket, a 15G  fixed lighting bracket, pole and cable suspension mounts, all with a wide range of aiming options.

Typical Applications

Product Features

• In excess of 20,000 Lumens at all operating temperatures  tested to LM-79-08
• Sealed and tested to IP6K9K
• Variety of bracket options including 50G mobile equipment bracket,  15G Fixed Lighting Bracket, Pole and cable suspension mount interfaces  – All with universal aiming ability
• Input 18-52V DC, 280 Watts Max Power Draw
• 240W Nominal @ 24V to 48V
• **Optional Universal Mains (100-240VAC & 50-60Hz) Input when  combined with AC/DC converter
• -40°C to +50°C operating temperature range
• EMC approvals: ISO 13766, CE, C-tick, FCC CISPR25 Class 2  radiated emissions
• Comes pre-wired with 1.8 Metres of high quality double insulated  marine grade cable
• Fully sealed LED requires no servicing
• Non-stick and easy to clean surface coating
• ** AC/DC converter is considered a component which will be installed  as part of a complete installation by a suitably qualified person.  The final installation must be re-confirmed that EMC directives are  still met in the respective country.

All HELLA Mining LED products are covered by a five (5) year warranty on light output, excluding environmental and physical damage.

*Fitting only, mounting bracket will determine final value

LED-Worklight - HypaLUME - 24/48V - 25000lm - mounting/Screw Connection - Swivelling Mounting Bracket - Long-range illumination - Cable: 1800mm - Plug: DEUTSCH plug

The HypaLUME 24/48V DC is designed for applications that require high light output in extreme environments. The spotlight produces 25,000 lumens at an input voltage of 22-52V DC and consumes less than 260W. Extensive sealing and corrosion protection measures have been taken to ensure that the worklight can withstand the harshest conditions. The high-quality aluminium housing is corrosion-resistant and has a non-stick, easy-to-clean surface. The durable Grilamid® lens provides unmatched resistance to shock and vibration, while ensuring long-term UV stability and resistance to common chemicals throughout the life of the product. The LEDs produce a light colour similar to daylight, which helps prevent fatigue and high alertness. The LED driver electronics ensure stable light output over a wide range of voltage fluctuations. The HypaLUME 24/48V DC is also protected against reverse polarity and short circuit. The HypaLUME 24/48V DC is designed for operation in a temperature range of -40°C to +50°C. Advanced thermal management dissipates heat from the LEDs to ensure optimum light output over the life of the lamp.

Features

• Lamp Type: LED - Number of LEDs: 56 - Power consumption: 260W - Colour Temperature: 5700K
• Patterned diffusing lens
• Fulfils ECE norm.: R10 - Prot.type (IP Code): IP6K9K/IP6K7
• Aluminium Housing - Diffusing Lens Material: PC (Polycarbonate)
• Width: 520mm - Height: 380mm - Depth: 166mm - with pipe
• Specially developed for mining applications
• Highly efficient light distribution
• Suitable for energy-saving lighting systems

Specifications

• Part number: HMF2000LMOB
• Hella number: 1GJ 011 872-511
• Barcode (EAN): 9416325246398
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: Swivelling Mounting Bracket
• Light Design: LED
• Lamp Type: LED
• Voltage: 24 / 48 V
• Height: 380 mm
• Width: 520 mm
• Depth: 166 mm
• Light Distribution: Long-range illumination
• fulfils ECE standard: R10
• DIN/ISO: 13766
• fulfils test standard: RCM
• Plug Type: DEUTSCH plug
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Luminous Flux: 25000 lm
• Colour Temperature: 5700 K
• Number of LEDs: 56
• Power Consumption: 260 W
• Cable Length: 1800 mm
• Housing Type: Aluminium Housing
• Lens Material: PC (Polycarbonate)
• Lens Type: patterned lens
• Product line: HypaLUME

with pipe Assy./disassy. by qualified personnel required!
